Best Selling Electric Bolt Lock for Fully Frameless Glass Door

Get the best selling electric bolt lock for fully frameless glass doors. As a factory, we provide high-quality and reliable security solutions. Buy now!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
ZDL-5818S
Input Voltage
12VDC
Delay Times
0, 2.5, 5 Seconds Optional
Cylinder Diameter
12.5
Weight
1.2kg
Transport Package
Standard Packing
Specification
CE, RoHS
Trademark
ZUDSEC
Origin
China
HS Code
853110
Production Capacity
5000000/Year

Product Description

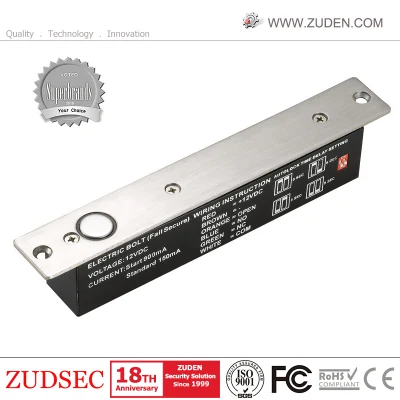

Electric Bolt for Full Frameless Glass Door: Adopt high quality materials, stable & reliable, DC12V, ZDL-5818 is specially designed for frameles glass doors (without up & down frame), used by matching a bracket, and is convenient to match with automatic door. Time delay setting can keep the bolt open/close status in a certian period. So when it connects to access control, it can make some employee enter or exit the door simultaneously. It also can check the position of lock and door.

Features:
- it's specially used for full frameless glass door (without up & down frame)
- Safety mode: Power-on to lock; Power-off to open( fail safe).
- Adjustable delay: 0 Second, 2.5 Seconds, 5 seconds optional.
- With NO /NC output(Connect NC, fail safe; Connect NO, fail secure).
- Signal output: Door state, Lock state.

Best Selling Electric Bolt Lock for Fully Frameless Glass Door
Best Selling Electric Bolt Lock for Fully Frameless Glass Door


Specifications


Input Voltage: 12VDC
Current: Start 0.9A, Standby: 0.25A
Delay times: 0, 2.5, 5 Seconds optional
Cylinder diameter:12.5; Lockpin length:15.0±1.0mm
Product Dimension: 170*49*43mm(Bold); 170*49*30mm(Magnet)
           Bolt diameter: 12.5mm;  Bolt length: 15.1mm
Packing size: 190*90*55mm; Weight: 1.2Kg

Best Selling Electric Bolt Lock for Fully Frameless Glass Door
Best Selling Electric Bolt Lock for Fully Frameless Glass Door
Best Selling Electric Bolt Lock for Fully Frameless Glass Door
Best Selling Electric Bolt Lock for Fully Frameless Glass Door
Best Selling Electric Bolt Lock for Fully Frameless Glass Door
Best Selling Electric Bolt Lock for Fully Frameless Glass Door
Best Selling Electric Bolt Lock for Fully Frameless Glass Door
Best Selling Electric Bolt Lock for Fully Frameless Glass Door
